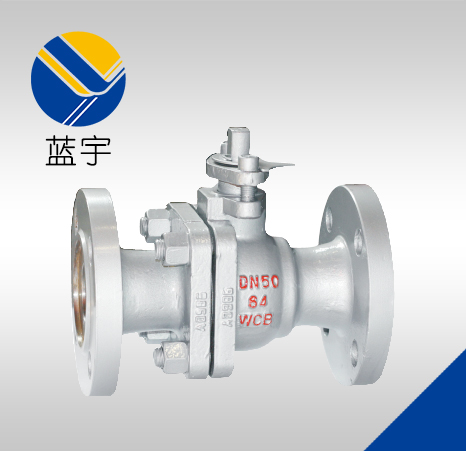

性能范围 Specifications
|
型 号 type |
公称压力 NOMINAL PRESSURE | 试 验 压 力 |
工作温度(℃) Working Temperature |
适用介质 Suitable Medium | ||
| 强度(水)Mpa | 密封(水)空气(Mpa) | 低压密封(空气)Mpa | ||||
| Q41F-16P(R) | 1.6 | 2.4 | 1.8 | 0.6 | ≤150 | NITRIC ACID |
| 硝 酸 类 | ||||||
| Q41F-25P(R) | 2.5 | 3.8 | 2.8 | 0.6 | ≤150 | NITRIC ACID |
| 硝 酸 类 | ||||||
| Q41F-40P(R) | 4.0 | 6.0 | 4.4 | 0.6 | ≤150 | NITRIC ACID |
| 硝 酸 类 | ||||||
主要零件材料 Material for main parts
| 零件名称PART NAME 材 料 MATERIAL Q41F-16P-25P-40R Q41F-16R-25P-40R 阀 体BODY 铬镍钛钢CI NI TI STEEL 铬镍钼钛钢CI NI MO TI STEEL 球 体BALL 阀 杆STEM 密 封 圈SEALCIRLE 聚四乙烯 POLYTER AFUOROETHYENEA 板 手HAND WHEEL 铸 钢CARBON TEEL |
主要连接尺寸和外形尺寸 Main connecting and overall dimensions
|
型 号 TYPE | 公称通径 DN | 尺 寸(mm) | |||||||
| L | D | D1 | D2 | H | b-f | Z-Φd | Do | ||
| Q41F-16P(R) | 15 | 130 | 95 | 65 | 45 | 60 | 14-2 | 4-14 | 108 |
| 20 | 140 | 105 | 75 | 55 | 64 | 14-2 | 4-14 | 120 | |
| 25 | 150 | 115 | 85 | 65 | 90 | 16-2 | 4-14 | 165 | |
| 32 | 165 | 135 | 100 | 78 | 105 | 16-2 | 4-18 | 180 | |
| 40 | 180 | 145 | 110 | 85 | 150 | 16-3 | 4-18 | 240 | |
| 50 | 200 | 160 | 125 | 100 | 190 | 16-3 | 4-18 | 240 | |
| 65 | 220 | 180 | 145 | 120 | 195 | 18-3 | 4-18 | 320 | |
| 80 | 250 | 195 | 160 | 135 | 215 | 20-3 | 8-18 | 350 | |
| 100 | 280 | 215 | 180 | 155 | 250 | 20-3 | 8-18 | 400 | |
| 125 | 320 | 245 | 210 | 185 | 280 | 22-3 | 8-18 | 500 | |
| 150 | 360 | 280 | 240 | 210 | 320 | 24-3 | 8-23 | 600 | |
| 200 | 400 | 335 | 295 | 265 | 370 | 26-3 | 12-23 | 800 | |
| Q41F-25P(R) | 40 | 180 | 145 | 110 | 85 | 160 | 16-3 | 4-18 | 240 |
| 50 | 200 | 160 | 125 | 100 | 205 | 20-3 | 4-18 | 270 | |
| 65 | 220 | 180 | 145 | 120 | 215 | 22-3 | 8-18 | 350 | |
| 80 | 250 | 195 | 160 | 135 | 230 | 22-3 | 8-18 | 400 | |
| 100 | 280 | 230 | 190 | 160 | 270 | 24-3 | 8-23 | 500 | |
| 125 | 320 | 270 | 220 | 188 | 300 | 28-3 | 8-25 | 600 | |
| 150 | 360 | 300 | 250 | 218 | 340 | 30-3 | 8-25 | 900 | |
| 200 | 400 | 360 | 310 | 278 | 400 | 34-3 | 12-25 | 1100 | |
| Q41F-40P(R) | 15 | 130 | 95 | 65 | 45 | 60 | 16-2 | 4-14 | 40 |
| 20 | 140 | 105 | 75 | 55 | 65 | 16-2 | 4-14 | 51 | |
| 25 | 150 | 115 | 85 | 65 | 90 | 18-2 | 4-14 | 58 | |
| 32 | 180 | 135 | 100 | 78 | 105 | 18-3 | 4-18 | 66 | |
| 40 | 200 | 145 | 110 | 85 | 170 | 18-3 | 4-18 | 76 | |
| 50 | 220 | 160 | 125 | 100 | 230 | 20-3 | 4-18 | 88 | |
| 65 | 250 | 180 | 145 | 120 | 250 | 22-3 | 8-18 | 110 | |
| 80 | 280 | 195 | 160 | 135 | 250 | 22-3 | 8-18 | 121 | |
| 100 | 320 | 230 | 190 | 160 | 295 | 24-3 | 8-23 | 150 | |
| 125 | 400 | 270 | 220 | 188 | 330 | 28-3 | 8-25 | 176 | |
| 150 | 400 | 300 | 250 | 218 | 375 | 30-3 | 8-25 | 204 | |
| 200 | |||||||||
